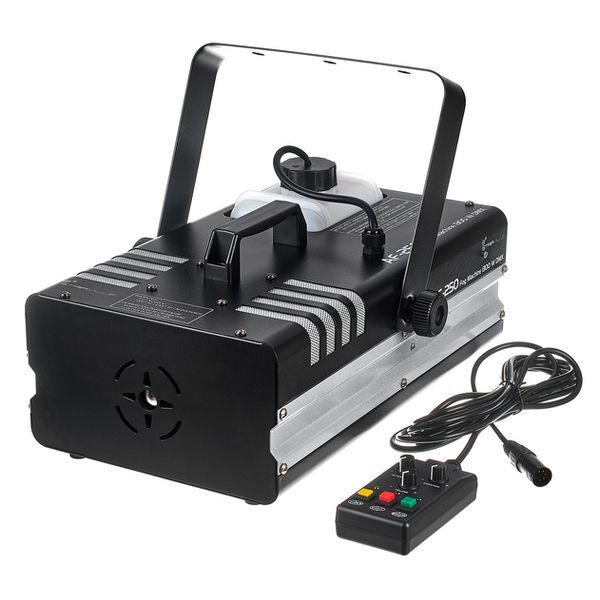

Fog Machine
Powerful fog machine for stages, clubs, etc.
Completely revised version with very efficient heating element
Creates fog effects with a heating power of only 1300 W that equal that of a 1800 W unit
Controllable via DMX 512 or simply with the multifunctional remote control with timer function
Includes mounting bracket for operation on trusses or ceilings and multifunctional remote control (timer, interval, volume)
Suitable radio remote control: Art. 464052 (not included)
Technical data:
Heating element: electronic vaporiser with 1,300 W
Heating time: approx. 4 min,
Continuous output: 7 s
Reheating time: 14 s
Fluid consumption: approx. 90 ml/min
Output volume: approx. 180 m³ / min
Output range: approx. 4-5 m
Tank capacity: 1.9 l
DMX-512 (1 channel)
DMX input and output: 3-pin XLR
Power supply: AC 230V, 50 Hz
Power consumption: 1,300 watts
Dimensions (L x W x H): 430 x 310 x 190 mm
Weight: 7.1 kg
Note: This machine is intended exclusively for use with original Stairville fluids

FAST-FOG (Art. 209054 )
E-M Fluid (Art. 121307 )
E Fluid (Art. 105454 )
E-C Fluid (Art. 105455 )
E-HD Heavy Duty Fluid (Art. 105456 )
